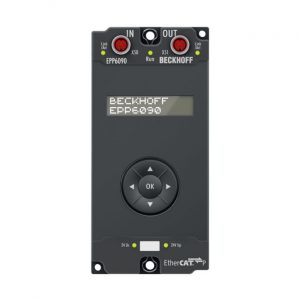

EPP6090-0000 | EtherCAT P Box, display with navigation switch, operating hours counter

EPP6090-0000 | EtherCAT P Box, display with navigation switch, operating hours counter

Technical data
EPP6090-0000

Protocol
EtherCAT

Technology
EtherCAT P display box

Switch inputs
navigation switch: up, down, left, right, OK

Display
LC display, 2 x 16 characters (> 16 characters = scrolling text mode), switchable backlight

Special characters
2 characters (5 x 8 pixel matrix)

Operating hours counter
32 bit overflow after 136 years (no reset possible), secure data storage > 100 years (@15 minutes writing interval), accuracy: ±50 ppm

Time measuring
4 x 32 bit second counter (reset possible)

Counter
4 x 32 bit counter (reset possible)

Storage interval
manually/automatically every 15 minutes

Distributed clocks
–

Current consumption from US
typ. 130 mA + sensor supply

Weight
approx. 230 g

Operating/storage temperature
0…+55 °C/-25…+85 °C

Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4

Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable

Approvals/markings
CE, UL in preparation
