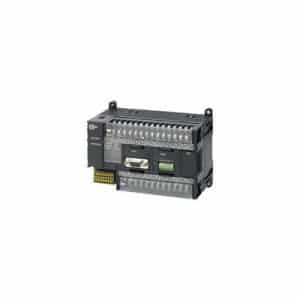

Bộ điều khiển lập trình PLC Omron CP1H-Y20DT-D (12 In-8 Out)

– CPU với 20 đầu I/O: 12 đầu vào, 8 đầu ra NPN transistor (sinking)
– Nguồn cấp: 24VDC
– Tốc độ thực hiện lệnh: Lệnh cơ bản: 0.01µs; Lệnh đặc biệt: 0.15µs
– Bộ nhớ chương trình: 20K steps
– Bộ đếm tốc độ cao: 100 kHz, 2 axes
– Ngõ ra xung tốc độ cao: 100 kHz for 2 axes
– Cổng truyền thông: Trang bị sẵn cổng USB, chọn lựa thêm RS232C, RS422/RS485
– Ngõ vào Analog: 4
– Ngõ ra Anaglo: 2
– Có thể gắn thêm 7 bộ mở rộng CPM1 và 2 bộ mở rộng CJ1W
– Chức năng thời gian thực (Clock)
– Nhiệt độ làm việc: 0~55oC
– Tiêu chuẩn: IEC 61000; JIS C0040; JIS C0041

Omron CP1H

SKU	Điện áp ngõ vào	Ngõ vào	Ngõ ra
CP1H-Y20DT-D	24VDC	12 Input DC	8 Output relay
CP1H-X40DR-A	100-240V	24 Input DC	16 Output relay
CP1H-XA40DR-A	100-240V	24 Input DC	16 Output relay
CP1H-X40DT-D	24VDC	24 Input DC	16 Output transistor
CP1H-X40DT1-D	24VDC	24 Input DC	16 Output transistor
CP1H-XA40DT-D	24VDC	24 Input DC	16 Output transistor
CP1H-XA40DT1-D	24VDC	24 Input DC	16 Output transistor

Download tài liệu PLC Omron CP1H Series

► Catalogue PLC Omron CP1H Series

Module mở rộng

Module	Mô tả
Digital Module
CP1W-8ED	Module digital, 8 Input DC
CP1W-8ER	Module digital, 8 Output Relay
CP1W-16ER	Module digital, 16 Output Relay
CP1W-32ER	Module digital, 32 Output Relay
CP1W-20EDR1	Module digital, 12 Input DC / 8 Output Relay
CP1W-40EDR	Module digital, 24 Input DC / 16 Output Relay
Analog, Temperature Module
CP1W-AD041	Module analog 4 Input
CP1W-DA021	Module analog 2 Input
CP1W-DA041	Module analog 4 Output
CP1W-MAD11	Module analog 2 Input – 1 Output
CP1W-MAD42	Module analog 4 Input – 2 Output
CP1W-MAD44	Module analog 4 Input – 4 Output
CP1W-TS001	Module nhiệt độ Thermocoup Input, 2 kênh
CP1W-TS002	Module nhiệt độ Thermocoup Input, 4 kênh
CP1W-TS101	Module nhiệt độ Pt100 input, 2 kênh
CP1W-TS102	Module nhiệt độ Pt100 Input, 4 kênh
Other Module
CP1W-CIF01	Module truyền thông RS-232
CP1W-CIF11	Module truyền thông RS-422/485 (50m)
CP1W-CIF12	Module truyền thông RS-422/485 (500m)
CP1W-CIF41	Module truyền thông Ethernet TCP/IP
CP1W-SRT21	Module truyền thông CompoBus/S slave 8 inputs and 8 outputs
CP1W-CN811	Cáp nối Module mở rộng
CP1W-BAT01	Nguồn nuôi bộ nhớ dự phòng

Name	Specifications	Model
CJ Unit Adapter	Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates)	CP1W-EXT01
Analog Input Units	4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000), -10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000)) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points	CJ1W-AD042
	8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.)	CJ1W-AD081-V1
	4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.)	CJ1W-AD041-V1
Analog Output Units	4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points	CJ1W-DA042V
	8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 μs/output.)	CJ1W-DA08V
	8 outputs (4 to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 μs/ output.)	CJ1W-DA08C
	4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max.	CJ1W-DA041
	2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max.	CJ1W-DA021
Analog I/O Unit	4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max. (Can be set to 1/8,000, 500 μs/point.)	CJ1W-MAD42
Process Input Units	4 fully universal inputs: Pt100 (3-wire), JPt100 (3- wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range, -1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle: 60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points)	CJ1W-PH41U *
	4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V Conversion speed: 250 ms/4 points	CJ1W-AD04U
	4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs	CJ1W-PTS51
	4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs	CJ1W-PTS52
	2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV, Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs	CJ1W-PTS15
	2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA	CJ1W-PDC15
Temperature Control Units	4 loops, thermocouple input, NPN output	CJ1W-TC001
	4 loops, thermocouple input, PNP output	CJ1W-TC002
	2 loops, thermocouple input, NPN output, heater burnout detection function	CJ1W-TC003
	2 loops, thermocouple input, PNP output, heater burnout detection function	CJ1W-TC004
	4 loops, platinum resistance thermometer input, NPN output	CJ1W-TC101
	4 loops, platinum resistance thermometer input, PNP output	CJ1W-TC102
	2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function	CJ1W-TC103
	2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function	CJ1W-TC104
High-speed Counter Unit	2 inputs, max. input frequency: 500 kpps	CJ1W-CT021
Position Control Units	Pulse train, open collector output, 1 axis	CJ1W-NC113
	Pulse train, open collector output, 2 axes	CJ1W-NC213
	Pulse train, open collector output, 4 axes	CJ1W-NC413
	Pulse train, line driver output, 1 axis	CJ1W-NC133
	Pulse train, line driver output, 2 axes	CJ1W-NC233
	Pulse train, line driver output, 4 axes	CJ1W-NC433
Space Unit	—	CJ1W-SP001
ID Sensor Units	For V680 Series, 1 R/W Head	CJ1W-V680C11
	For V680 Series, 2 R/W Heads	CJ1W-V680C12
	For V600 Series, 1 R/W Head	CJ1W-V600C11
	For V600 Series, 2 R/W Heads	CJ1W-V600C12
CompoNet Master Unit	Word slaves: 2,048 points, Bit slaves: 512 points	CJ1W-CRM21
CompoBus/S Master Unit	CompoBus/S remote I/O, 256 points max.	CJ1W-SRM21
Controller Link Units	Wired (shielded twisted-pair cable)	CJ1W-CLK23
Serial Communications Units	1 RS-232C port and 1 RS-422A/485 port	CJ1W-SCU42
	2 RS-232C ports	CJ1W-SCU22
	2 RS-422A/485 ports	CJ1W-SCU32
	1 RS-232C port and 1 RS-422A/485 port	CJ1W-SCU41-V1
	2 RS-232C ports	CJ1W-SCU21-V1
	2 RS-422A/485 ports	CJ1W-SCU31-V1
EtherNet/IP Unit	Shielded twisted-pair cable (STP), category 5 or 5e or higher Tag data links and message communications supported	CJ1W-EIP21
Ethernet Unit	100Base-TX	CJ1W-ETN21
DeviceNetTM Unit	Functions as master and/or slave; allows control of 32,000 points max. per master	CJ1W-DRM21
MECHATROLINK-II Position Control Unit	2 axes	CJ1W-NC271
	4 axes	CJ1W-NC471
	16 axes	CJ1W-NCF71
	16 axes	CJ1W-NCF71-MA
Fl-net Unit	100Base-TX	CJ1W-FLN22
SPU	High-speed Data Storage Unit	CJ1W-SPU01-V2
