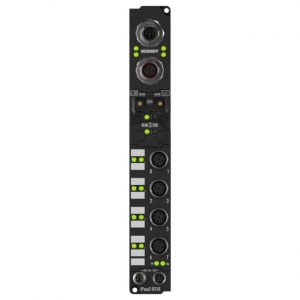

IP4132-B510 | Fieldbus Box, 4-channel analog output, CANopen, voltage, ±10 V, 16 bit, differential, M12

IP4132-B510 | Fieldbus Box, 4-channel analog output, CANopen, voltage, ±10 V, 16 bit, differential, M12

Technical data
IP4132-B510

Extension modules
–

Digital peripheral signals
according to I/O type

Analog peripheral signals
according to I/O type

Number of PDOs (CANopen)
16 send and 16 receive process data objects

Additional CANopen features
life, node guarding, emergency object, variable mapping, store/restore

Configuration possibility
through KS2000 or the controller (service data objects)

Data transfer rates
automatic detection of 10 kbaud up to 1 Mbaud

Bus interface
1 x M12 plug, 5-pin

Power supply
control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type

Power supply connection
feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin

Box supply current
45 mA + current consumption of sensors, max. 0.5 A

Auxiliary power current
according to I/O type

Electrical isolation
control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type

Operating/storage temperature
0…+55 °C/-25…+85 °C

Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4

Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable

Approvals/markings
CE, UL
