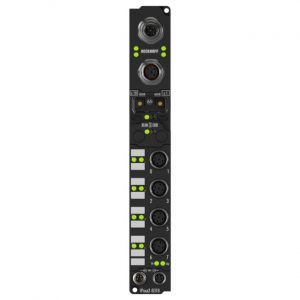

Fieldbus Box 8 kênh digital output 24VDC Beckhoff IP2042-B318

Fieldbus Box 8 kênh digital output 24VDC Beckhoff IP2042-B318

Technical data
IP2042-B318

Configuration possibility
via KS2000 or the controller, DP-V1 extensions are supported

Data transfer rates
automatic detection up to 12 Mbaud

Bus interface
1 x M12 socket, 5-pin, 1 x M12 plug, 5-pin (tee-connector integrated), B-coded

Power supply
control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type

Power supply connection
feed: 2 x M8 male socket, 4-pin; no downstream connection

Box supply current
85 mA + current consumption of sensors, max. 0.5 A

Auxiliary power current
according to I/O type

Electrical isolation
control voltage/fieldbus: no, control voltage/inputs or outputs: according to I/O type

Operating/storage temperature
0…+55 °C/-25…+85 °C

Vibration/shock resistance
conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission
conforms to EN 61000-6-2/EN 61000-6-4

Protect. class/installation pos.
IP 65/66/67 (conforms to EN 60529)/variable

Approvals/markings
CE, UL

Thông tin bổ sung Fieldbus Box 8 kênh digital output 24VDC Beckhoff IP2042-B318

Dòng sản phẩm:

Loại sản phẩm:

Thương hiệu: Beckhoff

Kentek.com.vn cung cấp Fieldbus Box 8 kênh digital output 24VDC Beckhoff IP2042-B318 chính hãng, bảo hành theo quy định nhà sản xuất, giao hàng toàn quốc, mua hàng liên hệ Hotline 0963 872 967 để được báo giá và tư vấn nhanh nhất.
