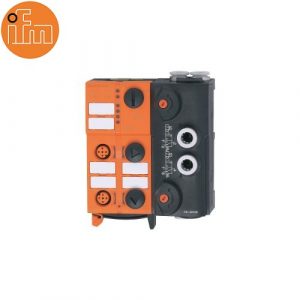

AirBox IFM AC5227

AirBox IFM AC5227

Application

Medium temperature [°C]
-10…50

Electrical data

Operating voltage [V]
26.5…31.6 DC

Max. current consumption from AS-i [mA]
180

Integrated watchdog
yes

Inputs / outputs

Number of inputs and outputs
Number of digital inputs: 2; Number of pneumatic outputs: 2

Inputs

Number of digital inputs
2

Input circuit of digital inputs
PNP

Sensor supply of the inputs
AS-i

Voltage supply [V]
20…30; (via flat cable)

Max. total current rating of inputs [mA]
100

Input current High [mA]
6…10

Input current Low [mA]
0…2

Min. switching level high signal [V]
11

Digital inputs protected against short circuits
yes

Outputs

Electrical design
AS-i

Number of pneumatic outputs
2

Operating conditions

Ambient temperature [°C]
-10…55

Protection
IP 67

AS-i classification

AS-i version
2.11; 3.0

AS-i addressing
addressing socket

Extended addressing mode possible
no

AS-i profile
S-3.F.F

AS-i I/O configuration [hex]
3

AS-i ID code [hex]
F.F

AS-i certificate pending
yes

Assignment of the data bits

data bit
D0
D1
D2
D3

input
1
2
3
4

socket
I-1
I-2
–
–

pin
2+4
2+4
–
–

pneumatic output
–
–
2
4

Mechanical data

Weight [g]
378.5

Type of mounting
quick mounting

Materials
PA; POM; piercing contacts: CuSn6 nickel-plated and tin-plated

Pneumatic system
2 x 3/2-way slide valves (free from overlapping)

Operating pressure range [bar]
2…8

Operating pressure range [MPa]
0.2…0.8

Operating pressure range [psi]
29…116

Air flow at 6/5 bar [l/min]
500

Permissible compressed air
non-lubricated compressed air class 6-3-1; lubricated compressed air class 6-3-4

Manual override
pressing/releasing or pressing/turning/locking

Tube fittings
8 mm

Exhaust
exhaust can be discharged through tube connection

Displays / operating elements

Display

operation
LED, green

errors
LED, red

function
LED, yellow

Accessories

Accessories (supplied)

lower part

Accessories (optional)

Mounting plate:, E74999

Module lower part:, E75000

Protective cap: M12, E73004

sealing plugs:, E75231

silencer:, E75232

Push-in L-fitting:, E75228

Push-in T-fitting:, E75227

Remarks

Remarks

If not pneumatically operated, E75231 sealing plug must be inserted.

Avoid ingress of dirt and dust.

Do not connect any of the following points to an external potential:

L-, L+, I-1, I-2

The connections are electrically connected with the AS-i cable.

Please see the notes on compressed air and EMC/ESD under “Downloads”

Pack quantity
1 pcs.

Electrical connection

quick mounting technology for AS-i flat cable: ; three orientations possible

Connector: M12
